Original Factory High Sensitivity Electronic Circuit Board Pcb Assembly For Gold Metal Detector

About Us

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.

Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.

Main Products

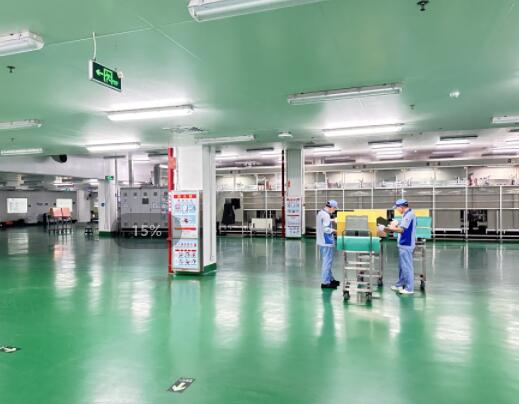

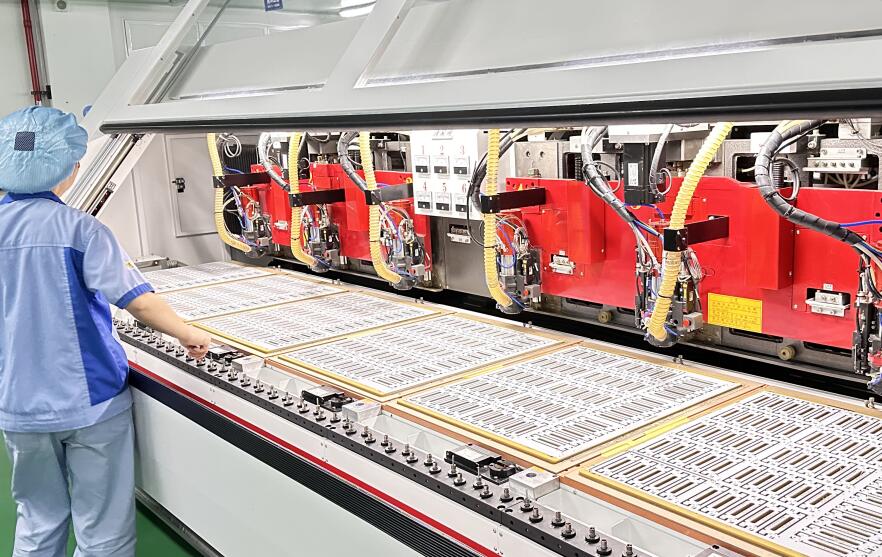

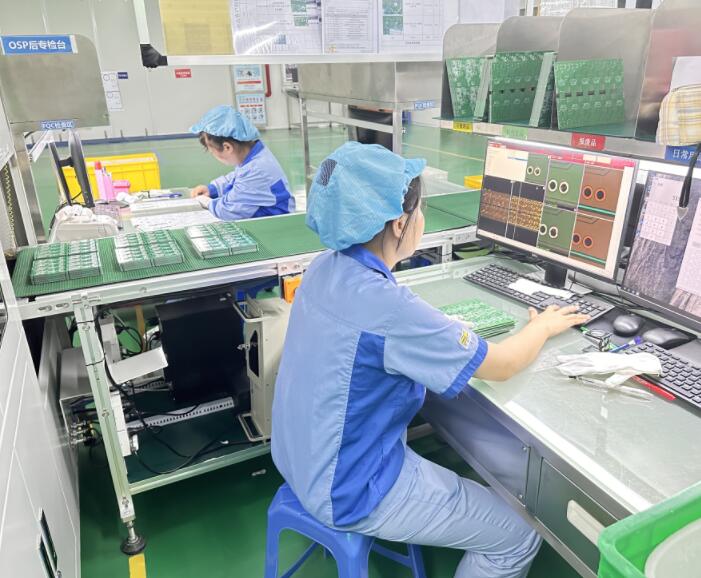

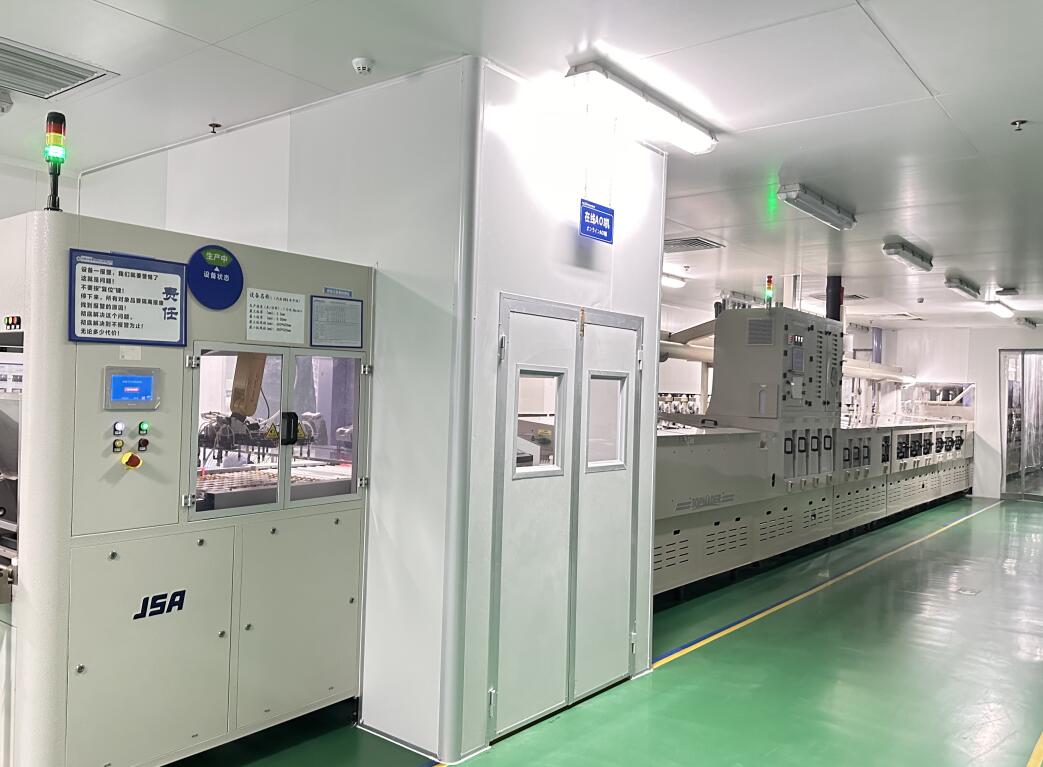

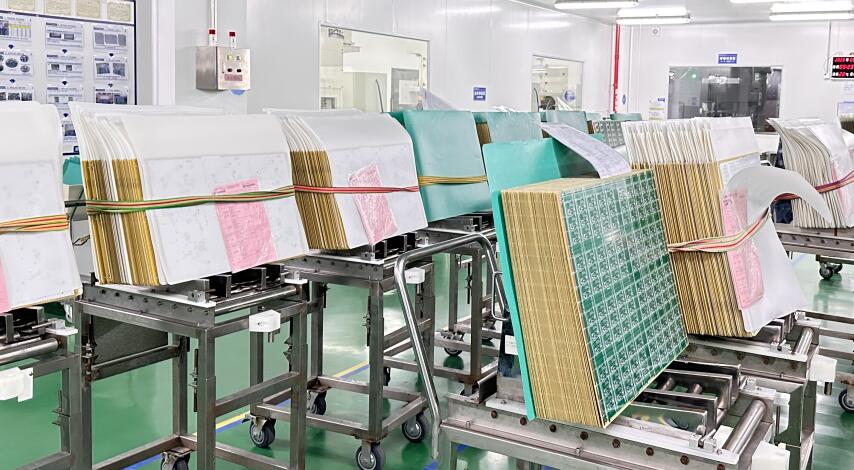

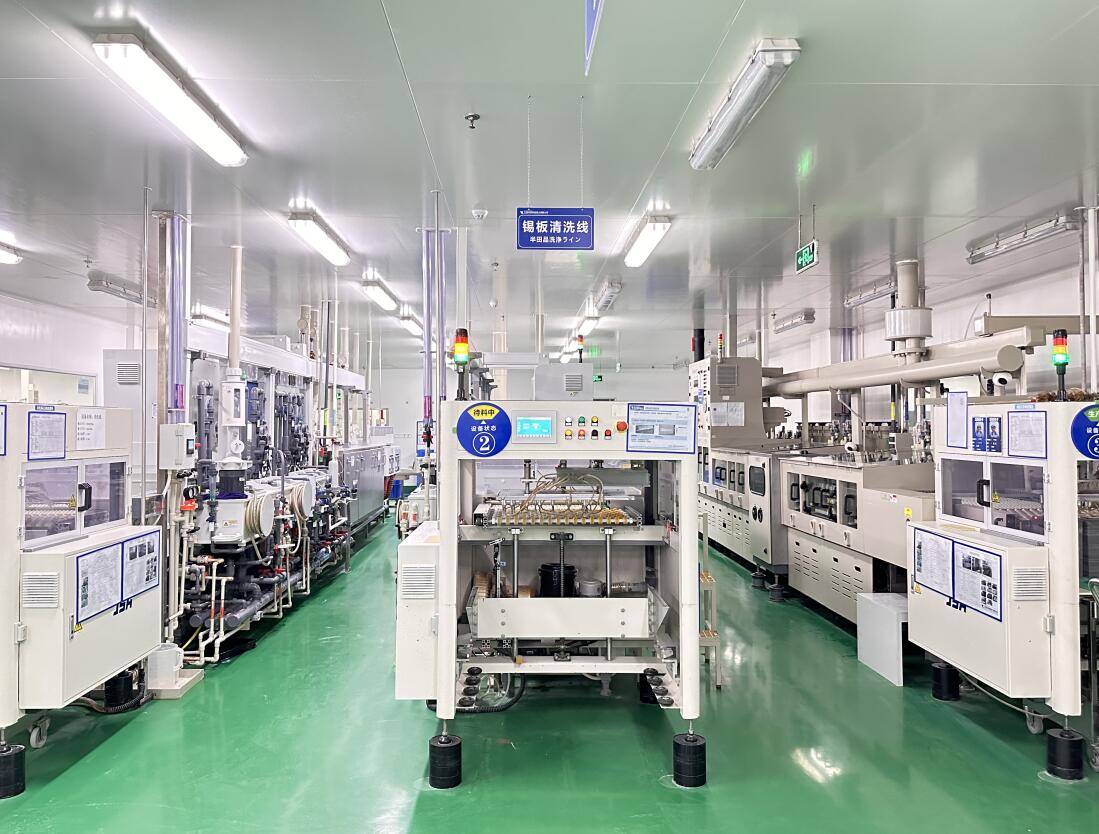

Production Line and Equipment

Manufacturing Technique Capabilities

Rigid PCB Manufacturing Capability		Volume Production	Sample Processing	Advanced Limit Capability
Layer Count		1-24L	1-68L	64 Layer
Max Thickness		6.0mm	10mm (394mil)	14mm (551mil)
Min Line Width/Space	Inner Layer	2.2mil / 2.2mil	2.0mil / 2.0mil	2.0mil / 2.0mil
Min Line Width/Space	Outer Layer	2.5mil / 2.5mil	2.2mil / 2.2mil	2.2mil / 2.2mil
Alignment Capability	To Core Board	±25um	±20um	±20um
Alignment Capability	Inner Layer Alignment	±5mil	±4mil	±4mil
Max Copper Weight		6 oz	15 oz	30 oz
Hole Size	Mechanical Drilling	≥0.15mm (6mil)	≥0.1mm (4mil)	≥0.1mm (4mil)
Hole Size	Laser Drilling	0.1mm (4mil)	0.050mm (2mil)	0.050mm (2mil)
Max Size	Unit Size	850mm x 570mm	1000mm x 600mm	1000mm x 600mm
Max Size	Panel Size	1250mm x 570mm	1320mm x 600mm	1320mm x 600mm
Aspect Ratio	Unit Size	20:1	28:1	28:1
Aspect Ratio	Panel Size	25:1	35:1	35:1
Material Support	Lead-free / Halogen-free	EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
	High-speed PCB Material	Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
	High-frequency PCB Material	Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
	Others	Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finished		HAL, HAL-LF, ENIG, Immersion Tin, OSP, Immersion Silver, Gold Finger, Hard Gold/Soft Gold Plating
Special Technology		Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, Mixed RF PCB, Busbar PCB

QUALITY ASSURANCE STANDARDS

Consciousness of making each product a high-quality product by strictly following the quality management system.
Based on ISO 9001, ISO 14001, IATF16949, RoHS, Reach, UL, CQC quality management systems.
Simultaneously running and maintaining IATF 16949 standards.
Involving all staff in the entire quality process control.
Shipping acceptance criteria: Customer requirements and standard IPC requirements.
Assisting customers in developing quality specifications and cooperating with experiments to optimize performance.

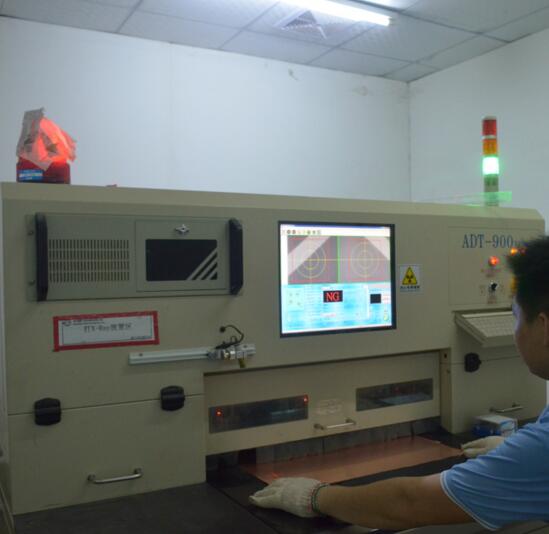

Laboratory Capabilities

Packing & Shipping

Shipping Standards

We offer diverse and reliable shipping options tailored to your logistics needs:

Air Express: UPS, DHL, TNT, CTS, and FEDEX for urgent prototype deliveries.
Railway Freight: Efficient land transport options for medium-sized volume runs.
Seaborne Shipping: Economical ocean transit options for high-volume mass production.
Custom Logistics: Flexible support for customer-designated shipping carriers and methods.

Layer Config	Sample Shortest Lead Time	Sample Standard Lead Time	Mass Production Lead Time
2 layer	24 Hours	3 Days	6-7 Days
4 layer	36 Hours	5 Days	8-10 Days
6 layer	48 Hours	5 Days	8-12 Days
8 layer	72 Hours	5 Days	9-12 Days
10 layer	4 Days	7 Days	14 Days
12 layer	4 Days	7 Days	16 Days
14 layer	5 Days	8 Days	16 Days
16 layer	5 Days	9 Days	18 Days
18 layer	7 Days	10 Days	18 Days
20 layer and above	To be negotiated	To be negotiated	To be negotiated

High Efficiency Team & Logistics

Professional Engineering

24h Support: Complete Gerber files handling and technical verification.

Fast EQ Resolution: Full engineering queries completed within 4-8 hours.

Scale: Capable of reviewing up to 400 new engineering projects daily.

Accepted File Formats

We work seamlessly with all standard industry formats:

RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM

Manufacturing Excellence

Non-Stop Production: All production processes run 24 hours.

Diverse Runs: Over 10,000 high-mix part numbers managed monthly.

Quick-Turn: More than 100 QTA orders handled daily from prototype to mass production.

Order Operation Center

Rapid Response: Under 24 hours response to standard general queries.

Fast Quotation: Instant quotation response within 4 hours.

Certifications

Frequently Asked Questions (FAQ)

What are your standard manufacturing lead times?

For samples, lead times range from 24 hours (2-layer boards) to 7 days (18-layer boards). Mass production standard lead times range from 6-7 days (2-layer) to 18 days (18-layer). Custom timelines can be negotiated for layers above 20.

Which CAD/CAM file formats do you accept?

We support and accept RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM file formats for engineering reviews.

What high-speed and high-frequency materials do you offer?

We offer a wide range of materials, including Megtron (4, 6, 7), Rogers (Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835), TU872SLK, FR408HR, CLTE, Genclad, Polyimide, Tk, LCP, BT, and more.

What is your maximum capability for layers and thickness?

We support up to 64-layer PCBs for advanced limit capabilities and up to 68-layer configs for sample processing. Our maximum limit thickness capability is 14mm (551mil).

How do you assure product quality?

Our processes align strictly with ISO 9001, ISO 14001, IATF 16949, RoHS, Reach, UL, and CQC. We use IPC standards and customer-specific test criteria as our shipping acceptance benchmarks.

What shipping methods are supported?

We provide options for air shipping (UPS, DHL, TNT, CTS, FEDEX), railway shipping, ocean shipping, or any shipping method designated by our customers.

Product Detail

Original Factory High Sensitivity Electronic Circuit Board Pcb Assembly For Gold Metal Detector
