Product Description

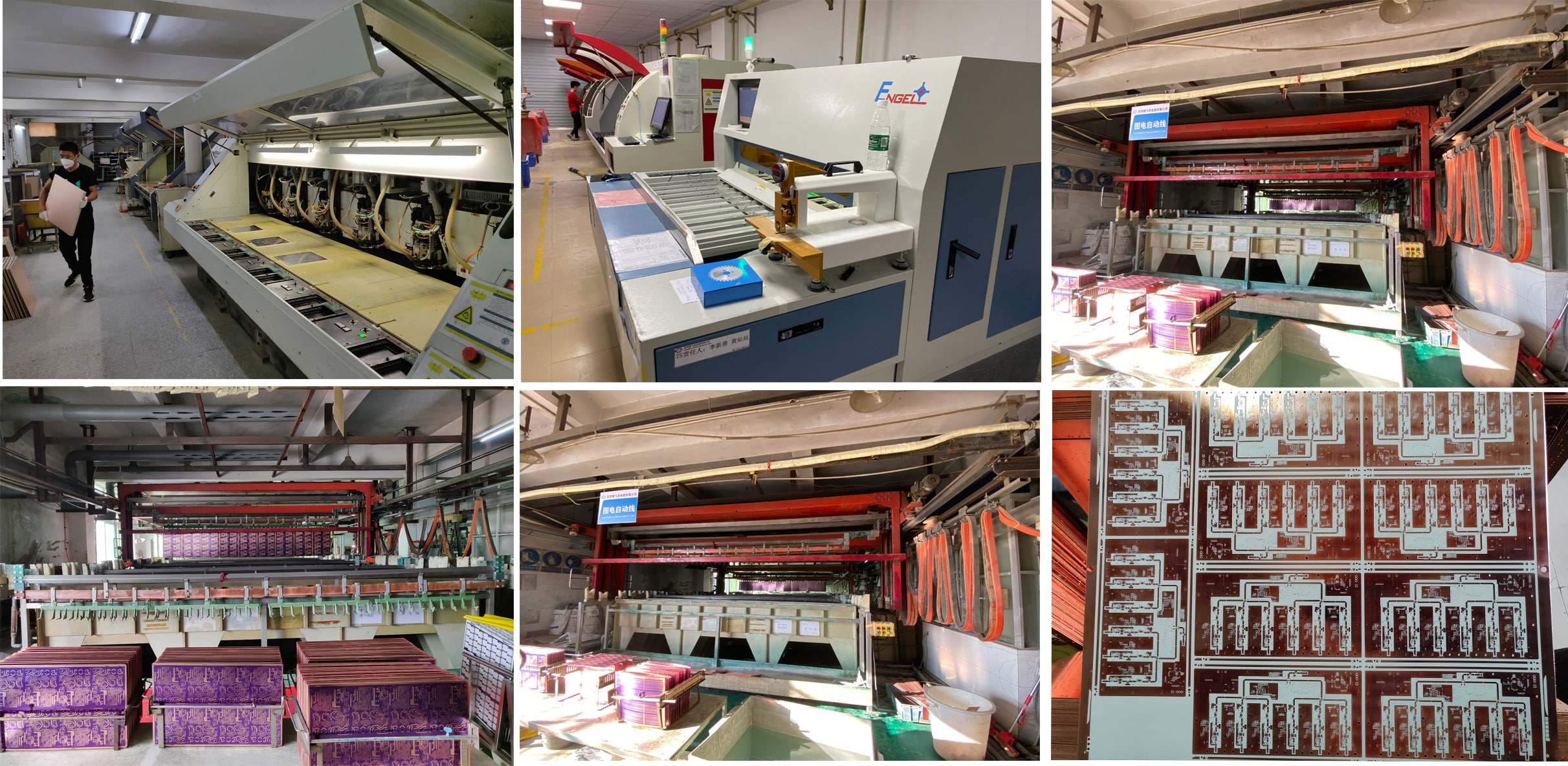

Production Capability
We have invested in the best equipment, environment and staff training. We have a production capability for standard and HDI, Rigid, RF and high frequency PCBs, together with through hole and min 0201 chips, 0.2mm pitch BGA balls SMD soldering, in small batch, mid volume and high volume quantities.
Professional PCB electronics manufacture services, every PCB enquiry or order is handled in the strictest of confidence. We can fabricate Laser holes, Impedance Control PCB, Buried & Blind Holes PCB, Countersunk hole, other special material or special process PCBs.
TOP PCB High frequency - Microwave Circuits Roger 4000+ FR4 Mixed Pressure
| Items |
Capacity |
| 1. Base Material |
Roger 4000+ FR4 Mixed pressure |
| 2. Layer / PCB thickness |
6 Layer / 1.6mm |
| 3. Copper thickness |
1oz copper |
| 4. Solder mask / Silkscreen |
green solder mask / white silkscreen |
| 5. Surface finished |
immersion gold |
| 6. Min width/space |
4.5 / 3.5 mil |
| 7. Min holes |
0.2mm |
| 8. Technics Characteristic |
trace width ± 10% |
| 9. Technical Requirement |
process difficulty: Roger 4000+ FR4 Mixed pressure, IPC class II standard. |
| Standard Produce time |
9-12 days |
| Fast produce time |
24h ~ 90h |
| Payment and shipment |
1) By T/T bank (wire transfer, the most popular way)
2) By Western Union
3) By Paypal (especially for samples)
4) By Cash
|
Applications and Our Services
A One-stop EMS Contract Manufacturer
We have established a quality system with ISO9001 and strictly implement the IPC class III standard to inspect the quality. 100% inspection includes electric test and AOI inspection. It can carry out high voltage test, impedance test, microsection, weldability test and other professional tests to keep up with more demands from users of high-tech products.
- CAM and BOM engineering
- PCB manufacture
- Materials management
- SMT and DIP assembly
- PCB and PCBA quick turn prototype
- Program and testing
- Cable assembly
- Function testing
- Final case assembly
- Package
- Logistics
Introduction
We have been manufacturing printed circuit boards for more than 20 years, established in 1990, as a PCB manufacture supplier of world competitive, high tolerance, high quality, small to medium volume production quantities. Whether it is a prototype printed circuit board assembly or large volume PCB production, we have the capacity and the knowledge to satisfy all of your printed circuit board production requirements.
We pride ourselves on a professional service with a friendly approach where quality is of paramount importance, in accordance with our ISO9001 Quality Management system and UL Approval.
We specialize in Printed Circuit Board Manufacturing and Quick turn PCB Prototype Fabrication. We specialize in Quick turn PCB services with an industry leading turnaround time as fast as 24 hours. When your company needs fast and rapid PCB prototyping, you can count on Custom Circuit Boards to deliver high quality printed circuit boards on time with competitive pricing.
We encourage all prospective clients to pay us a visit, we offer an open door policy for all customers both new and old, and believe that once you’ve seen our facility and talked to our expert staff you’ll have no doubts over our ability to meet your individual needs. We look forward to working with you to produce high quality PCB's at a competitive price.
Why Choose Us
We have over 15 professional engineers, all the products are tested ok before warehousing and shipping.
We have always kept a large stock of products. When you need to buy and repair parts, it is our pleasure to serve you. We look forward to building a good business relationship.
Packing & Shipping
We are not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Common packaging:
• PCB: Sealed bag, Anti-static bags, Suitable carton.
• PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Customized Cartons:
Carton outside according to the requirements of customers printed with specified details, marks, and other delivery information.
OEM/ODM Services
We provide one-stop PCB/PCBA customization services. To meet all of customer's PCB/PCBA requirements is our goal.
- To offer good quality PCB/PCBA to our customer, we will do many kinds of testing to ensure quality before shipment.
- Outgoing test to check min PTH Cu thickness, Min surface Cu thickness, ENIG Au data, Ni data, Au layer adhesion testing, soldermask adhesion testing, silkscreen adhesion testing, Thermal stress testing, hardness testing, Twist testing, Bow testing.
- Microsection testing to check hole Cu thickness, Surface Copper thickness, Wrap copper thickness, Hole Wall Integrity, soldermask thickness and stack up.
- E-test to check any open/short circuit.
- Thermal Stress Test to avoid any Delamination, Measling and others.
- Solderability of PTH to avoid any discolor, Wrinkles, Blisters, Measling, Blow-Hole, Soldermask peel off, and soldermask filled in hole-wall incompletely. Impedance testing, and so on...
Please feel free to contact us!
Frequently Asked Questions (FAQ)
Q1 How can you guarantee the quality of the parts?
We offer a 3-month warranty for used parts and a 1-year warranty for new parts. If you receive the parts and they do not work well, you can return them to us within 7 days, and we will cover the return shipping costs.
Q2 How are the items packed when sent out?
We typically use 3cm thick foam board to fill the inside of the box for protection. While we regularly use cartons to pack the parts, we will customize wooden boxes for exceptionally heavy items.
Q3 What payment and shipping methods do you accept?
We accept various payment methods including PayPal, Western Union, and T/T (Bank Transfer). For shipping, we primarily use reliable express services such as UPS, EMS, TNT, FEDEX, and DHL.
Q4 Do you have testing equipment and what is the delivery time?
Yes, we have complete testing equipment, and all parts are 100% tested before shipment. Since most parts are in stock, the delivery time is usually 1-2 days.
Q5 Can you produce PCBs if I only have a sample and no PCB file? Can you design Gerber files?
Yes, we can clone and generate the Gerber files based on your physical sample, and proceed with production accordingly. We can also design Gerber files if you provide the schematics.
Q6 Are my design files safe when I submit them for manufacturing?
Absolutely. All customer design files are highly secured within our facility and will not be shared with any third party. We are fully prepared to sign a Non-Disclosure Agreement (NDA) to secure your intellectual property.
