Global buyers cannot evaluate DDR5 by data rate alone. JEDEC’s JESD79-5 standard begins at 3,200 MT/s and supports major architectural changes beyond speed. Each DDR5 module uses two independent 32-bit channels. On the workbench, that means smaller transaction paths and better command efficiency. It also means more design variables.

This introduction to DDR5 architecture explained draws on JEDEC specifications, Micron technical documentation, and TrendForce memory-market reports. TrendForce has reported rapid DDR5 adoption in servers, especially where AI workloads demand higher bandwidth. However, forecasts differ by region, platform, and qualification cycle. The numbers are useful, but they are not universal. Buyers should question them.

Jim Handy, a veteran semiconductor and memory-industry analyst, frames the decision clearly: “DDR5 is not simply faster DDR4; it is a different system design problem.” That perspective matters when comparing on-die ECC, dual-channel module behavior, PMIC placement, and thermal limits. A 6,400 MT/s label may look impressive beside a product sheet. Yet latency, rank configuration, motherboard routing, and workload patterns can change the real result.

Power deserves equal attention. DDR5 lowers nominal DRAM voltage to 1.1 volts, while moving power management onto the module. This can simplify platform delivery, but it also creates new heat around the PMIC. Small details matter.

The architecture is powerful, not effortless. Global procurement teams should verify compatibility, validation status, supply continuity, and total platform cost before selecting a module. Mistakes remain possible, especially when marketing language replaces measured testing.

DDR5 Architecture Basics: How the Memory System Is Structured

DDR5 architecture is built around a more divided memory system. Each module typically uses two independent 32-bit subchannels. Together, they provide the expected 64-bit data path, excluding optional error-correction bits. This split can improve command efficiency and reduce idle periods during mixed workloads. DDR5 also increases bank groups and uses longer burst transfers, moving more data in each operation. The module’s power-management circuit handles voltage regulation locally, while the serial presence data hub stores configuration details for platform detection.

Tip 1: Check the subchannel design, not only the advertised capacity. A high-capacity module may still perform poorly when the memory controller, firmware, and workload are mismatched. Confirm supported ranks, module density, and operating temperature. These details matter in compact systems with restricted airflow. Small errors here can become expensive delays.

Tip 2: Do not confuse on-die ECC with full system ECC. On-die ECC helps correct internal cell errors, but it does not replace end-to-end data protection. Buyers should verify whether the platform supports registered or unbuffered ECC, depending on its intended use. I have seen specifications that sound reassuring but omit this distinction. That is a weakness worth questioning. Also inspect training behavior, firmware support, and validation records across the required temperature range. Architecture diagrams look clean; real systems are less predictable.

Memory Channels and DIMM Layouts in DDR5 Platforms

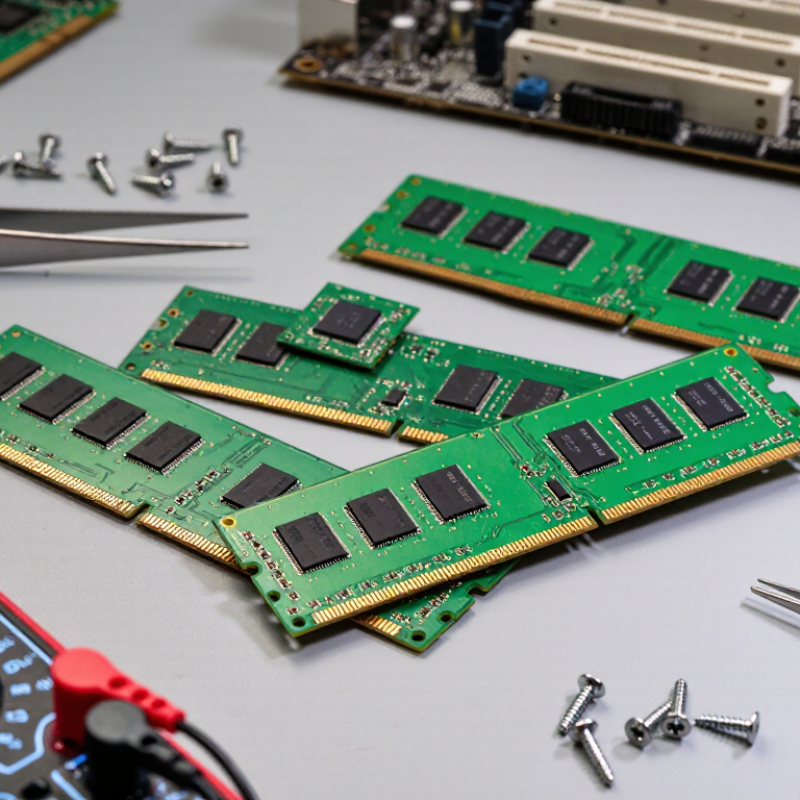

7 DDR5 Architecture Tips Every Global Buyer Should Know

Memory Channels and DIMM Layouts in DDR5 Platforms

DDR5 platforms divide each memory channel into two independent 32-bit subchannels. This improves access efficiency, but it does not remove layout limits. A two-DIMM-per-channel design can offer higher capacity, yet it often reduces achievable speed. A one-DIMM-per-channel layout usually gives cleaner signaling and easier validation. Check the platform’s supported population rules before comparing module prices.

DIMM slot order matters more than many buyers expect. Populate the recommended primary slots first, then add secondary slots only when capacity demands it. Mixing different capacities, ranks, or memory timings can force conservative settings. That assumption fails. I have seen a system boot successfully while running below its advertised performance. Firmware readings and operating-system reports should be checked after installation.

Board documentation should identify channel pairs, supported capacities, and limits for one or two DIMMs per channel. Look for tested configurations, not only maximum theoretical capacity. Thermal conditions also affect long-duration workloads, especially in dense layouts. Leave space around modules when the chassis permits it. The diagram looked clear; the result was not. Buyers should request validation data for their intended workload, because office tasks, simulation, and virtualization stress channels differently. A small mistake in slot placement can become a costly troubleshooting cycle.

Understanding DDR5 Banks, Bank Groups, and Burst Transfers

DDR5 Architecture Tips Every Global Buyer Should Know

Understanding DDR5 Banks, Bank Groups, and Burst Transfers

DDR5 organizes memory into more banks and bank groups than earlier generations. A typical device uses 32 banks across eight bank groups. This structure allows more operations to overlap, but only when the memory controller schedules them carefully. Bank interleaving can keep data moving while another bank completes a read cycle. Poor address mapping can create repeated conflicts instead.

Burst transfers also deserve close attention. DDR5 commonly uses a burst length of 16, moving more data during one command. This suits cache-line access and improves bus efficiency. However, a long burst does not automatically improve every workload. Small, scattered requests may still waste part of the transferred data. That matters.

During procurement testing, I examine sequential bandwidth and random latency separately. I also check whether the platform uses two independent 32-bit subchannels. This design can improve parallel access, especially with mixed read and write traffic. Yet results depend on firmware, rank layout, timing settings, and controller behavior. Specifications alone are not enough.

I once treated higher burst efficiency as a guaranteed performance gain. That assumption failed under transaction-heavy workloads. Buyers should request measurements using their own access patterns, not only vendor simulations. Check bank-group timing, refresh behavior, thermal conditions, and module population rules. Small delays add up. A detailed datasheet review can reveal limitations before volume deployment.

Power Management and On-Module Regulation in DDR5

How Global Buyers Can Compare DDR5 Compatibility and Scalability

FAQS

Conclusion

DDR5 architecture explained begins with understanding how the memory system is organized around higher data rates, improved channel efficiency, and greater scalability than previous generations. This overview examines how memory channels and DIMM layouts influence system bandwidth, capacity, and installation flexibility. It also clarifies the roles of banks, bank groups, and burst transfers, which help the memory controller manage parallel operations and maintain consistent performance under different workloads.

For global buyers, DDR5 selection also requires attention to power management and on-module regulation, as these features affect energy efficiency, thermal behavior, and platform stability. Comparing compatibility means checking supported capacities, module configurations, channel requirements, and processor or platform limitations. By evaluating architecture, electrical design, layout options, and future expansion needs together, buyers can choose DDR5 solutions that balance performance, reliability, scalability, and long-term procurement flexibility across different markets.
